Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

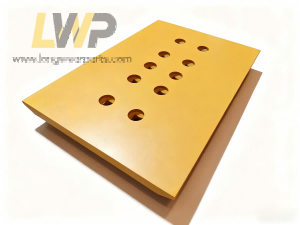

Our aftermarket full sets of Caterpillar 990 Cutting Edge and End Bits replacement are premium ultra-heavy-duty bolt-on Ground Engaging Tools exclusively manufactured for the Caterpillar 990 large mining wheel loader series. Cat 990 operates exclusively in severe open-pit mining, hard granite quarrying, large-volume overburden removal and high-impact heavy aggregate handling scenarios.
Material Options :
1. Boron Alloy Steel: is the most popular material for Cat loader cutting edges and end bits. Boron alloy undergoes through-hardening heat treatment ,can well balance wear resistance and impact toughness,
Limitation: Not suitable for heavy large rock with heavy sharp impact, risk of chipping if hardness too high.
2. Medium Carbon Steel : is low-cost material,only for clean dirt, topsoil, landscaping, light municipal backfill. Lower hardness, easy to bend and wear out quickly once hitting rock. Not recommended for aggregate or stone jobs.
3. Chromium Alloy Steel : own excellent abrasive resistance, higher material cost. Mainly used for severe abrasion conditions such as sand mine, quartz sand. Brittle under heavy impact, mostly custom aftermarket replacement.
4. Hardfaced / Overlay Welded Cutting Edge ：base plate is carbon steel or boron steel, with hard metal overlay welded on the working surface and own extra wear resistance. Service life greatly extended for pure abrasive sand, silt while the hardfacing layer may peel under strong rock impact.
Our aftermarket Caterpillar Loader cutting edges can supply various bevel design, including Double Bevel Flat Edge(DBF),Single Bevel Flat Edge(SBF),Super V Bevel and Wide Bevel Flat Edge(WBF). The bevel angle determines the cutting edge's penetration capability and wear life. A sharper edge penetrates more easily but also wears down faster , end users should select based on "material density + abrasiveness."
Lead Time: Stock goods 5-7 working days; Mass production 25-35 working days; Custom parts 35-50 working days. All goods will pass strict inspection before delivery.Welcome to contact us for more detailed information!
Part number
Alternative number
Description
Dimension
Hole
1019188
101-9188
Spade Nose Base Edge
2.500 x x 175.200
1515980
151-5980
Spade Nose Base Edge
2.500 x 31.500 x 175.200
40
1456989
145-6989
Corner LH/RH Protectors
1456990
145-6990
Corner RH/LH
1066420
106-6420
Center
1.500 x 26.000 x 32.600
6
1066421
106-6421
Center RH
1.500 x 23.250 x 46.688
6
1623297
162-3297
End RH
1.500 x 23.250 x 40.188
10
1066423
106-6423
Center LH
1.500 x 23.250 x 46.688
6
1623296
162-3296
End LH
1.500 x 23.250 x 40.188
10
1066420FHA
106-6420FHA
Half Arrow Center
2.000 x 19.690 x 32.600
6
1066421FHA
106-6421FHA
Half Arrow Center RH
2.000 x 17.880 x 45.258
6
1623297FHA
162-3297FHA
HA End RH
2.000 x 17.880 x 38.770
6
1066423FHA
106-6423FHA
Half Arrow Center LH
2.000 x 17.880 x 45.258
6
1623296FHA
162-3296FHA
HA End LH
2.000 x 17.880 x 38.770
6
2Q4247
2Q-4247
Spade Nose Base Edge
2.500 x 34.680 x 181.500
36
4T6381
4T-6381
Base Edge Wear Plate
1.125 x 13.000 x 53.250
9
6Y0313
6Y-0313
Base Edge Wear Plate
1.375 x 16.000 x 53.250
9
4E9915
4E-9915
Spade Nose Base Edge
2.500 x 31.500 x 175.200
36
1U4929
1U-4929
Base Edge Wear Plate
1.375 x 10.000 x 31.750
5
9U9862
9U-9862
Base Edge Wear Plate
1.125 x 13.000 x 37.625
6
