Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .
Long wear parts product line includes a comprehensive array of Cutting edge, Segment ,Half arrow,Spade Nose Base Edge,Protector compatible with all makes and models of Caterpillar loaders .
Long wear parts supply full range of bolt-on and weld-in blades , edge design includes Single bevel flat edge(SBF), Wide Bevel flat edge(WBF),Double bevel flat edge(DBF)
Part number
Alternative number
Description
Dimension
Hole

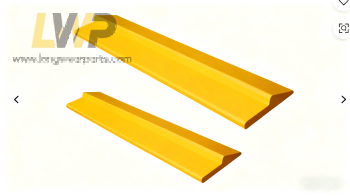

4T6384
4T-6384
Center Base Edge Wear Plate
1.125 x 13.000 x 35.000
6
4T6390
4T-6390
End Base Edge Wear Plate
4T6540
4T-6540
HD Center Base Edge Wear Plate
1.375 x 13.000 x 35.500
6
4T6553
4T-6553
HD End Base Edge Wear Plate
4E0051
4E-0051
Modulok Base Edge Assembly
x x 132.100
4T6393
4T-6393
Center Base Edge Wear Plate
1.125 x 13.000 x 29.625
5
4T6539
4T-6539
HD Center Base Edge Wear Plate
1.375 x 13.000 x 29.625
5
4T6383
4T-6383
End Base Edge Wear Plate
1.125 x 13.000 x 35.125
6
4T6541
4T-6541
HD End Base Edge Wear Plate
1.375 x 13.000 x 36.000
6
8R5610
8R-5610
Modulok Base Edge Assembly
2.000 x x 148.700
8R5611
8R-5611
Spade Nose Base Edge
2.000 x 23.504 x 148.031
16
9U9862
9U-9862
Center Base Edge Wear Plate
1.125 x 13.000 x 37.625
6
6I8607
6I-8607
Center Base Edge Wear Plate
1.375 x 13.000 x 37.625
6
2573694BASE
257-3694BASE
Stepped Spade Nose Base Edge
2.500 x x 154.567
2337167
233-7167
Bolt on Top Plate Center
2530191
253-0191
Bolt on Top Plate LH
2530192
253-0192
Bolt on Top Plate RH
2788185BASE
278-8185BASE
Stepped Spade Nose Base Edge
2.500 x x 154.567
2788186
278-8186
Corner LH/RH for 2-9J9600 Protectors
2512180
251-2180
Center Adapter Cover
4.716 x 5.444 x 13.752
2512461
251-2461
End Adapter Cover
4.700 x 5.444 x 13.752
2571782
257-1782
HA Segment (Cast)
2.000 x 17.323 x 16.000
4
2571783
257-1783
HA Segment RH (Cast)
2.000 x 17.323 x 16.000
4
2571784
257-1784
HA Segment LH (Cast)
2.000 x 17.323 x 16.000
4
2571778
257-1778
Bolt on Top Plate Center
1.000 x 9.645 x 15.750
4
2571779
257-1779
Bolt on Top Plate RH
1.000 x 9.645 x 19.084
4
2571781
257-1781
Bolt on Top Plate LH
1.000 x 9.645 x 19.084
4
2556710
255-6710
Weld-On Bucket Wear Plate
2556711
255-6711
Weld-On Bucket Wear Plate
2556712
255-6712
Weld-On Bucket Wear Plate
2573655
257-3655
Weld-On Bucket Wear Plate
