Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

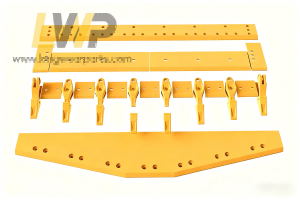

Long wear parts product line includes a comprehensive array of Cutting edge, Segment ,Half arrow,Spade Nose Base Edge,Protector compatible with all makes and models of Caterpillar loaders .
Long wear parts supply full range of bolt-on and weld-in blades , edge design includes Single bevel flat edge(SBF), Wide Bevel flat edge(WBF),Double bevel flat edge(DBF).
Part number
Alternative number
Description
Dimension
Hole

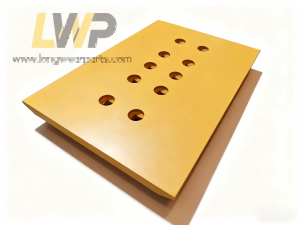

1099212
109-9212
Center
1.375 x 16.000 x 57.087
3
1099230
109-9230
HD Center
1.625 x 16.000 x 57.087
3
1099230-16
109-9230-16
Extra HD Center
2.000 x 16.000 x 57.087
3
2174727
217-4727
HA Center (Cast)
1.750 x 16.750 x 37.938
4
2174727TP
217-4727TP
Bolt on Top Plate Center
1.250 x 13.515 x 37.938
4
2174727N
217-4727N
Narrow HA Center (Cast)
1.875 x 12.750 x 37.938
2
2085178
208-5178
C/IMP Center REV
1.375 x 16.000 x 57.087
3
1099019
109-9019
Segment
1.180 x 14.170 x 12.500
2
980G1X8CP
980-G1X8CP
Bolt on Top Plate Center
1.000 x 8.000 x 12.500
2
1099215
109-9215
Rear Wear Plate
1.375 x 10.000 x 24.500
4
1939015
193-9015
Base Edge For Bolt-on Edges Only
1.750 x 12.000 x 142.000
18
4T6588
4T-6588
Center
1.375 x 16.000 x 47.625
6
1940659
194-0659
Base Edge For Bolt-on Edges Only
1.750 x 12.000 x 150.000
22
7K9309
7K-9309
Corner no holes RH
1.750 x 10.750 x 12.500
8V9581
8V-9581
Spade Nose Base Edge Without Holes
1.750 x 26.000 x 133.000
9V3561
9V-3561
Spade Nose Base Edge
1.750 x 25.500 x 132.750
18
4T7141
4T-7141
Center
1.375 x 16.000 x 24.438
4
4T7144
4T-7144
Center RH
1.375 x 16.000 x 32.875
4
4T7143
4T-7143
End LH
1.375 x 16.000 x 30.875
4
1078586
107-8586
HD Center
1.750 x 16.000 x 24.438
4
1078589
107-8589
HD Intermediate End LH
1.750 x 16.000 x 32.875
4
1078587
107-8587
HD End LH
1.750 x 16.000 x 30.875
4
1078590
107-8590
HD Intermediate End RH
1.750 x 16.000 x 32.875
4
1078588
107-8588
HD End RH
1.750 x 16.000 x 30.875
4
4T3015
4T-3015
Segment
1.180 x 14.170 x 10.125
2
4T7139
4T-7139
Segment RH
1.180 x 14.170 x 15.500
2
4T7140
4T-7140
Segment LH
1.180 x 14.170 x 15.500
2
1078582
107-8582
HD Segment
1.750 x 14.250 x 10.125
2
1078583
107-8583
HD Segment RH
1.750 x 14.250 x 15.500
2
1078584
107-8584
HD Segment LH
1.750 x 14.250 x 15.500
2
1133140
113-3140
HA Segment (Cast)
1.750 x 18.276 x 11.339
2
1133141
113-3141
HA Segment RH (Cast)
1.750 x 18.276 x 12.913
2
1133142
113-3142
HA Segment LH (Cast)
1.750 x 18.276 x 12.913
2
1133140TP
113-3140TP
Bolt on Top Plate Center
1.250 x 8.000 x 11.339
2
1133141TP
113-3141TP
Bolt on Top Plate RH
1.250 x 8.000 x 15.269
2
1133142TP
113-3142TP
Bolt on Top Plate LH
1.250 x 8.000 x 15.269
2
1231396
123-1396
Spade Nose Base Edge Without Holes
1.750 x 25.375 x 137.500
1456979
145-6979
Corner RH/LH
1456977
145-6977
Corner LH/RH for 9J9600 Protector
1.250 x 19.228 x 10.224
2
9J9600
9J-9600
Sidebar Protector
1.500 x 6.938 x 22.688
2
1139942
113-9942
Spade Nose Base Edge
1.750 x 25.394 x 137.480
25
