Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

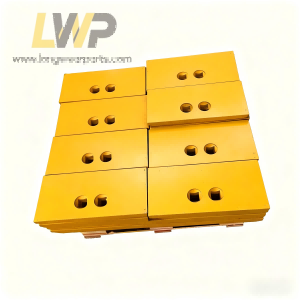

Long wear parts product line includes a comprehensive array of Cutting edge, Segment ,Half arrow,Spade Nose Base Edge,Protector compatible with all makes and models of Caterpillar loaders .
Long wear parts supply full range of bolt-on and weld-in blades , edge design includes Single bevel flat edge(SBF), Wide Bevel flat edge(WBF),Double bevel flat edge(DBF).
Part number
Alternative number
Description
Dimension
Hole
6W2983
6W-2983
Base Edge With Segment Holes
1.500 x 11.813 x 95.750
30
4V7175FAB
4V-7175FAB
Corner 1 hole RH
1.375 x 8.787 x 9.662
1
4V7174FAB
4V-7174FAB
Corner 1 hole LH
1.375 x 8.787 x 9.662
1
8E5310
8E-5310
Corner 2 hole RH
2.000 x 8.750 x 10.750
2
8E5311
8E-5311
Corner 2 hole LH
2.000 x 8.750 x 10.750
2
2530064
253-0064
New Style 2 Hole Corner Protector RH
1.250 x 8.938 x 15.000
2
2530065
253-0065
New Style 2 Hole Corner Protector LH
1.250 x 8.938 x 15.000
2
1735426
173-5426
Old Style 2 Hole Corner Protector RH
1.250 x 8.750 x 13.000
2
1735427
173-5427
Old Style 2 Hole Corner Protector LH
1.250 x 8.750 x 13.000
2
1U2408
1U-2408
Center
1.180 x 14.170 x 40.063
3
3G6395
3G-6395
End
1.375 x 20.252 x 8.000
3
2085343
208-5343
C/IMP End REV
1.375 x 20.250 x 8.000
3
4T6696
4T-6696
Segment
1.180 x 14.170 x 7.500
2
1406865
140-6865
HD Segment
1.375 x 14.170 x 7.500
2
9V6106
9V-6106
Weld-On Wear Plate
8K9499
8K-9499
Base Edge For Bolt-on Edges or Teeth
1.250 x 10.500 x 98.000
21
8K7525
8K-7525
Corner no holes RH
1.750 x 9.000 x 9.750
8K7526
8K-7526
Corner no holes LH
1.750 x 9.000 x 9.750
1U1478
1U-1478
Center RH
1.180 x 14.170 x 55.875
8
1U1479
1U-1479
Center LH
1.180 x 14.170 x 42.000
6
9K8472
9K-8472
Base Edge Without Holes
1.250 x 10.500 x 98.000
1V8664
1V-8664
Corner no holes LH/RH
1.250 x 7.000 x 9.500
7V0898
7V-0898
Base Edge For Bolt-on Edges or Teeth
1.500 x 11.750 x 110.500
18
1U2409
1U-2409
Center
1.180 x 14.170 x 47.500
3
