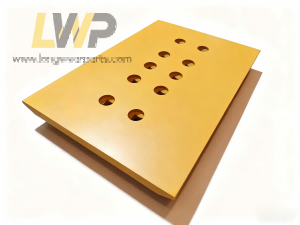

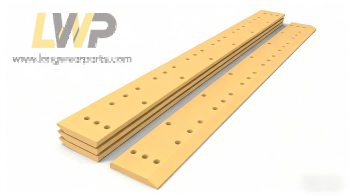

Caterpillar loader 970 cutting edge 1U1909/1U0593/100-6668

Products information
1)Material: Carbon steel or Manganese steel or boron steel
2)Surface: yellow paint or gray paint or as your request
3)Hardness: HB280-500 or HB320~360 or HB440~500
4)Technique: forging, machining, heat treatment
5) Package: strong plywood pallet
6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

Our aftermarket full sets of Caterpillar 970 Wheel Loader Cutting Edge and End Bits replacement are bolt-on ground engaging tools (GET) designed for CAT 970 series wheel loaders, including 970F,970G,970H,970K,970L,970M,970GC and 970XE variants. The cutting edge is the central wear plate mounted on the front lip of the loader bucket, while end bits are corner protective pieces fitted on both ends of the cutting edge.

Material Options :

1. Boron Alloy Steel: is the most popular material for Cat loader cutting edges and end bits. Boron alloy undergoes through-hardening heat treatment ,can well balance wear resistance and impact toughness,

Limitation: Not suitable for heavy large rock with heavy sharp impact, risk of chipping if hardness too high.

2. Medium Carbon Steel : is low-cost material,only for clean dirt, topsoil, landscaping, light municipal backfill. Lower hardness, easy to bend and wear out quickly once hitting rock. Not recommended for aggregate or stone jobs.

3. Chromium Alloy Steel : own excellent abrasive resistance, higher material cost. Mainly used for severe abrasion conditions such as sand mine, quartz sand. Brittle under heavy impact, mostly custom aftermarket replacement.

4. Hardfaced / Overlay Welded Cutting Edge ：base plate is carbon steel or boron steel, with hard metal overlay welded on the working surface and own extra wear resistance. Service life greatly extended for pure abrasive sand, silt while the hardfacing layer may peel under strong rock impact.

Our aftermarket Caterpillar Loader cutting edges can supply various bevel design, including Double Bevel Flat Edge(DBF),Single Bevel Flat Edge(SBF),Super V Bevel and Wide Bevel Flat Edge(WBF).

The bevel angle determines the cutting edge's penetration capability and wear life. A  sharper edge penetrates more easily but also wears down faster , end users should select based on "material density + abrasiveness."

Lead Time: Stock goods 5-7 working days; Mass production 25-35 working days; Custom parts 35-50 working days. All goods will pass strict inspection before delivery.Welcome to contact us for more detailed information!

Part number	Alternative number	Description	Dimension	Hole
1U1909	1U-1909	Center	1.180 x 14.170 x 49.750	3
1U0593	1U-0593	Center	1.180 x 14.170 x 51.875	3
1006668	100-6668	Center	1.180 x 14.170 x 55.100	3
3G6395	3G-6395	End	1.375 x 20.252 x 8.000	3
1004046	100-4046	Heavy Duty Wider Center	1.375 x 16.000 x 51.875	3
1U0593HA	1U-0593HA	HA Center	1.750 x 15.625 x 33.500	4
3G6395HAR	3G-6395HAR	HA End RH	1.750 x 15.625 x 9.500	3
3G6395HAL	3G-6395HAL	HA End LH	1.750 x 15.625 x 9.500	3
1U0593TP	1U-0593TP	Bolt on Top Plate Center	1.000 x 12.586 x 33.500	4
3G6395TPR	3G-6395TPR	Bolt on Top Plate RH	1.000 x 12.586 x 5.750	3
3G6395TPL	3G-6395TPL	Bolt on Top Plate LH	1.000 x 12.586 x 5.750	3
1U0593HAN	1U-0593HAN	Narrow HA Center	1.750 x 11.125 x 33.500	2
2085345	208-5345	C/IMP Center REV	1.180 x 14.170 x 51.875	3
9W3477	9W-3477	C/IMP Center NR RH	1.375 x 11.000 x 51.875	3
9W3478	9W-3478	C/IMP Center NR LH	1.375 x 11.000 x 51.875	3
4T6699	4T-6699	Segment	1.180 x 14.170 x 10.625	2
1406868	140-6868	HD Segment	1.375 x 14.170 x 10.625	2
1744114	174-4114	HA Segment	1.750 x 13.500 x 10.625	2
7I3015	7I-3015	Base Edge With Segment	1.500 x 11.810 x 125.750	30
1406823	140-6823	HD Center	1.375 x 14.170 x 55.100	3
1677430	167-7430	HD End	1.625 x 20.180 x 8.000	3
1359410	135-9410	Heavy Duty Wider Center	1.375 x 16.000 x 55.250	3
1006668HA	100-6668HA	HA Center	1.750 x 15.625 x 35.375	4
1006668TP	100-6668TP	Bolt on Top Plate Center	1.000 x 12.586 x 35.375	4
1006668HAN	100-6668HAN	Narrow HA Center	1.750 x 11.125 x 35.375	2
1073287	107-3287	C/IMP Center NR RH	1.375 x 12.000 x 55.250	3
1073286	107-3286	C/IMP Center NR LH	1.375 x 12.000 x 55.250	3
1006666	100-6666	Segment	1.180 x 14.170 x 11.540	2
1406870	140-6870	HD Segment	1.375 x 14.170 x 11.540	2
1744116	174-4116	HA Segment	1.750 x 13.500 x 11.563	2
