Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

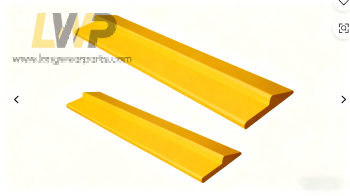

Long wear parts product line includes a comprehensive array of Cutting edge, Segment ,Half arrow,Spade Nose Base Edge,Protector compatible with all makes and models of Caterpillar loaders .
Long wear parts supply full range of bolt-on and weld-in blades , edge design includes Single bevel flat edge(SBF), Wide Bevel flat edge(WBF),Double bevel flat edge(DBF).
Part number
Alternative number
Description
Dimension
Hole
1U2413
1U-2413
Center
1.180 x 14.170 x 45.750
3
1U0601
1U-0601
Center
1.180 x 14.170 x 47.650
3
1073381
107-3381
Center
1.180 x 14.170 x 48.875
3
1321032
132-1032
HD Center
1.375 x 14.250 x 45.750
3
1321034
132-1034
HD Center
1.375 x 14.250 x 47.650
3
1321049
132-1049
HD Center
1.375 x 14.170 x 48.875
3
1359666
135-9666
HD Center
1.375 x 14.250 x 50.500
3
1380676
138-0676
C/IMP Center NR LH
1.125 x 11.000 x 48.875
3
1380677
138-0677
C/IMP Center NR RH
1.125 x 11.000 x 48.875
3
1399230
139-9230
Center
1.180 x 14.170 x 50.500
3
1U0601HAN
1U-0601HAN
HA Center (Cast)
1.625 x 10.375 x 30.250
2
4T8101HA
4T-8101HA
HA End (Cast)
1.625 x 15.125 x 8.375
3
9W3492
9W-3492
C/IMP Center NR RH
1.125 x 11.000 x 47.500
3
9W3493
9W-3493
C/IMP Center NR LH
1.125 x 11.000 x 47.500
3
1380672
138-0672
C/IMP Center NR RH
1.125 x 11.000 x 50.500
3
1380673
138-0673
C/IMP Center NR LH
1.125 x 11.000 x 50.500
3
4T6695
4T-6695
Segment
1.000 x 11.000 x 10.437
2
1321037
132-1037
HD Segment
1.375 x 11.000 x 10.438
2
4T6695HA
4T-6695HA
HA Segment (Cast)
1.375 x 10.875 x 10.438
2
1324715
132-4715
Segment
1.375 x 12.000 x 10.938
2
1407601
140-7601
Wider Segment
1.180 x 14.170 x 11.500
2
6W2988
6W-2988
Base Edge With Segment Holes
1.000 x 9.600 x 104.000
30
4T8068
4T-8068
Multi purpose dozer center
0.625 x 8.000 x 72.000
12
4T8078
4T-8078
Multi purpose dozer end
0.625 x 8.000 x 16.000
4
5V7416
5V-7416
Base Edge Without Holes
1.000 x 9.688 x 121.688
6W2973
6W-2973
Spade Nose Base Edge
1.375 x 19.410 x 110.830
18
6W3468
6W-3468
Corner no holes LH/RH
1.250 x 6.375 x 8.750
