Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

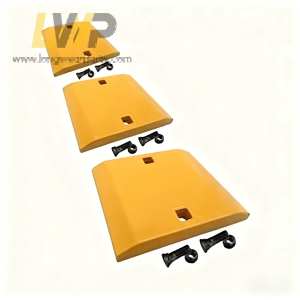

Long wear parts product line includes a comprehensive array of Cutting edge, Segment ,Half arrow,Spade Nose Base Edge,Protector compatible with all makes and models of Caterpillar loaders .
Long wear parts supply full range of bolt-on and weld-in blades , edge design includes Single bevel flat edge(SBF), Wide Bevel flat edge(WBF),Double bevel flat edge(DBF).
Part number
Alternative number
Description
Dimension
Hole
1U1465
1U-1465
Center
1.000 x 11.000 x 31.000
3
1U1464
1U-1464
End
1.000 x 11.000 x 32.250
3
1321026
132-1026
HD Center
1.375 x 11.000 x 31.000
3
1321027
132-1027
HD End
1.375 x 11.000 x 32.250
3
9W3469
9W-3469
C/IMP Center NR
1.000 x 8.000 x 31.000
3
9W3470
9W-3470
C/IMP End NR RH
1.000 x 8.000 x 32.250
3
9W3471
9W-3471
C/IMP End NR LH
1.000 x 8.000 x 32.250
3
8J9078
8J-9078
HA Center
0.875 x 8.000 x 31.000
3
8J9077
8J-9077
HA End
0.875 x 8.000 x 32.250
3
6W2987
6W-2987
Base Edge With Segment Holes
1.000 x 9.600 x 102.920
30
5V7276
5V-7276
Base Edge For Bolt-on Edges or Teeth
1.000 x 9.600 x 102.920
18
9W3490
9W-3490
C/IMP Center NR RH
3
9W3491
9W-3491
C/IMP Center NR LH
3
9W3488
9W-3488
C/IMP End NR RH
1.125 x 14.313 x 7.063
3
9W3489
9W-3489
C/IMP End NR LH
1.125 x 14.313 x 7.063
3
9W6747
9W-6747
Rear Wear Plate
1.000 x 10.000 x 20.750
4
8K8162
8K-8162
Base Edge For Bolt-on Edges or Teeth
1.000 x 9.000 x 105.875
20
1U1470
1U-1470
Center
1.180 x 14.170 x 39.000
4
1U1469
1U-1469
End
1.180 x 14.170 x 33.250
3
1321028
132-1028
HD Center
1.375 x 14.250 x 39.000
4
1321029
132-1029
HD End
1.375 x 14.250 x 33.250
3
9W3466
9W-3466
C/IMP Center NR
1.125 x 10.000 x 39.000
4
9W3467
9W-3467
C/IMP End NR RH
1.125 x 10.000 x 33.250
3
9W3468
9W-3468
C/IMP End NR LH
1.125 x 10.000 x 33.250
3
8J9076
8J-9076
HA Center
0.875 x 8.000 x 39.000
4
8J9075
8J-9075
HA End
0.875 x 8.000 x 33.250
3
