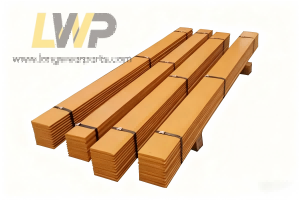

Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .
Long wear parts product line includes a comprehensive array of Cutting edge, Segment ,Half arrow,Spade Nose Base Edge,Protector compatible with all makes and models of Caterpillar loaders .
Long wear parts supply full range of bolt-on and weld-in blades , edge design includes Single bevel flat edge(SBF), Wide Bevel flat edge(WBF),Double bevel flat edge(DBF).
Part number
Alternative number
Description
Dimension
Hole
8Y8763
8Y-8763

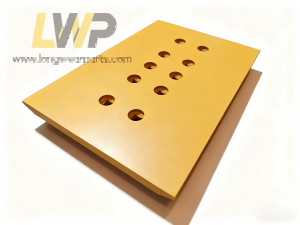

Base Edge With Segment Holes
1.000 x 9.625 x 85.000
28
4V1544
4V-1544
Corner 1 hole RH
1.000 x 8.270 x 8.150
1
4V1545
4V-1545
Corner 1 hole LH
1.000 x 8.270 x 8.150
1
6I8310
6I-8310
Corner 2 hole RH
1.500 x 8.641 x 8.125
2
6I8311
6I-8311
Corner 2 hole LH
1.500 x 8.641 x 8.125
2
2530060
253-0060
New Style 2 Hole Corner Protector RH
0.875 x 8.313 x 12.250
2
2530061
253-0061
New Style 2 Hole Corner Protector LH
0.875 x 8.313 x 12.250
2
1006359
100-6359
Center
1.000 x 11.000 x 36.100
3
4T8091
4T-8091
End
1.000 x 13.563 x 6.250
2
1062327
106-2327
Multi purpose dozer center
4T6692
4T-6692
Segment
1.000 x 11.000 x 7.688
2
4T6692HA
4T-6692HA
HA Segment (Cast)
1.375 x 10.875 x 7.688
2
