Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

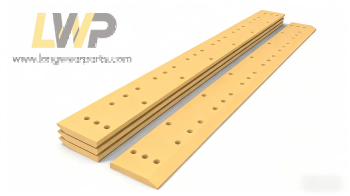

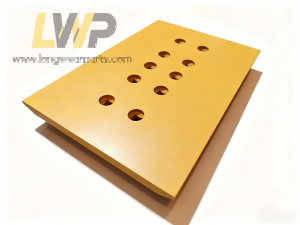

Our aftermarket full sets of Caterpillar 936 Cutting Edge and End Bits are heavy-duty bolt-on GET wear parts engineered for Caterpillar 936 mid-large wheel loader. The Cat 936 delivers powerful breakout force and large bucket capacity, widely deployed in large aggregate quarries, crushed stone yards, bulk stockpile rehandling, mine auxiliary loading, highway construction and mass earth backfill projects.
Purchasing Notes :
1. Confirm exact model and bucket type before ordering
Distinguish machine models and confirm general bucket or light rock bucket. Different bucket configurations have different hole layouts. It is better to provide OEM part number.
2. Avoid overly hard brittle blades
Excessively high hardness leads to brittleness and edge chipping. Qualified parts must balance wear resistance and toughness.
3. Check plate thickness and flatness strictly
Inspect plate straightness and uniform thickness on arrival. Reject bent, twisted or thin plates to prevent deformation during frequent scraping work.
4. Verify standard CNC hole precision
Unqualified hole positions will cause bolt loosening and equipment vibration, accelerating wear part damage. CNC precision holes are required.
Part number
Alternative number
Description
Dimension
Hole
6W2985
6W-2985
Base Edge With Segment
1.000 x 9.600 x 103.920
28
1104781
110-4781
Base Edge With Segment
1.000 x 9.637 x 95.940
28
1052345
105-2345
Base Edge With Segment
1.000 x 9.646 x 105.551
28
1104712
110-4712
Base Edge With Segment
1.000 x 9.620 x 107.310
28
8V1825
8V-1825
Base Edge For Bolt-on Edges
1.000 x 9.750 x 103.920
16
8V7619
8V-7619
Base Edge For Bolt-on Edges
1.000 x 9.630 x 104.906
10
4V1544
4V-1544
Corner 1 hole RH
1.000 x 8.270 x 8.150
1
4V1545
4V-1545
Corner 1 hole LH
1.000 x 8.270 x 8.150
1
6I8310
6I-8310
Corner 2 hole RH
1.500 x 8.641 x 8.125
2
6I8311
6I-8311
Corner 2 hole LH
1.500 x 8.641 x 8.125
2
2530060
253-0060
2 Hole Corner Protector RH
0.875 x 8.313 x 12.250
2
2530061
253-0061
2 Hole Corner Protector LH
0.875 x 8.313 x 12.250
2
8K6455
8K-6455
Corner no holes RH
1.500 x 8.000 x 8.500
8K6456
8K-6456
Corner no holes LH
1.500 x 8.000 x 8.500
1104782
110-4782
Center
1.000 x 11.000 x 41.750
3
1U0292
1U-0292
Center
1.000 x 11.000 x 45.750
3
1073746
107-3746
Center
1.000 x 11.000 x 46.563
3
1104711
110-4711
Center
1.000 x 11.000 x 47.250
3
4T8091
4T-8091
End
1.000 x 13.563 x 6.250
2
9W3484
9W-3484
C/IMP Center NR RH
1.000 x 8.000 x 45.750
3
9W3485
9W-3485
C/IMP Center NR LH
1.000 x 8.000 x 45.750
3
1239195
123-9195
C/IMP Center NR RH
1.000 x 8.000 x 47.250
3
1239196
123-9196
C/IMP Center NR LH
1.000 x 8.000 x 47.250
3
9W3481
9W-3481
C/IMP End NR RH
1.000 x 10.563 x 6.250
2
9W3482
9W-3482
C/IMP End NR LH
1.000 x 10.563 x 6.250
2
4T6694
4T-6694
Segment
1.000 x 11.000 x 8.860
2
4T6695
4T-6695
Segment
1.000 x 11.000 x 10.437
2
1321037
132-1037
HD Segment
1.375 x 11.000 x 10.438
2
4T6695HA
4T-6695HA
HA Segment
1.375 x 10.875 x 10.438
2
9V5705
9V-5705
Weld-On Wear Plate
0.750 x 8.000 x 7.000
9V4484
9V-4484
Wear Plate for ASSY
0.625 x 8.000 x 6.500
