Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

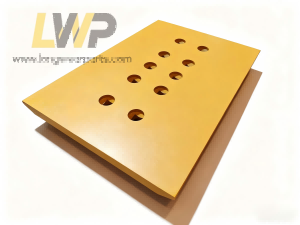

Long wear parts product line includes a comprehensive array of Cutting edge, Segment ,Half arrow,Spade Nose Base Edge,Protector compatible with all makes and models of Caterpillar loaders .
Long wear parts supply full range of bolt-on and weld-in blades , edge design includes Single bevel flat edge(SBF), Wide Bevel flat edge(WBF),Double bevel flat edge(DBF).
Part number
Alternative number
Description
Dimension
Hole
6W2985
6W-2985
Base Edge With Segment Holes
1.000 x 9.600 x 103.920
28
1104781
110-4781
Base Edge With Segment Holes
1.000 x 9.637 x 95.940
28
1052345
105-2345
Base Edge With Segment Holes
1.000 x 9.646 x 105.551
28
1104712
110-4712
Base Edge With Segment Holes
1.000 x 9.620 x 107.310
28
8V1825
8V-1825
Base Edge For Bolt-on Edges or Teeth
1.000 x 9.750 x 103.920
16
8V7619
8V-7619
Base Edge For Bolt-on Edges Only
1.000 x 9.630 x 104.906
10
4V1544
4V-1544
Corner 1 hole RH
1.000 x 8.270 x 8.150
1
4V1545
4V-1545
Corner 1 hole LH
1.000 x 8.270 x 8.150
1
6I8310
6I-8310
Corner 2 hole RH
1.500 x 8.641 x 8.125
2
6I8311
6I-8311
Corner 2 hole LH
1.500 x 8.641 x 8.125
2
2530060
253-0060
New Style 2 Hole Corner Protector RH
0.875 x 8.313 x 12.250
2
2530061
253-0061
New Style 2 Hole Corner Protector LH
0.875 x 8.313 x 12.250
2
8K6455
8K-6455
Corner no holes RH
1.500 x 8.000 x 8.500
8K6456
8K-6456
Corner no holes LH
1.500 x 8.000 x 8.500
1104782
110-4782
Center
1.000 x 11.000 x 41.750
3
1U0292
1U-0292
Center
1.000 x 11.000 x 45.750
3
1073746
107-3746
Center
1.000 x 11.000 x 46.563
3
1104711
110-4711
Center
1.000 x 11.000 x 47.250
3
4T8091
4T-8091
End
1.000 x 13.563 x 6.250
2
9W3484
9W-3484
C/IMP Center NR RH
1.000 x 8.000 x 45.750
3
9W3485
9W-3485
C/IMP Center NR LH
1.000 x 8.000 x 45.750
3
1239195
123-9195
C/IMP Center NR RH
1.000 x 8.000 x 47.250
3
1239196
123-9196
C/IMP Center NR LH
1.000 x 8.000 x 47.250
3
9W3481
9W-3481
C/IMP End NR RH
1.000 x 10.563 x 6.250
2
9W3482
9W-3482
C/IMP End NR LH
1.000 x 10.563 x 6.250
2
4T6694
4T-6694
Segment
1.000 x 11.000 x 8.860
2
4T6695
4T-6695
Segment
1.000 x 11.000 x 10.437
2
1321037
132-1037
HD Segment
1.375 x 11.000 x 10.438
2
4T6695HA
4T-6695HA
HA Segment (Cast)
1.375 x 10.875 x 10.438
2
9V5705
9V-5705
Weld-On Wear Plate
0.750 x 8.000 x 7.000
9V4484
9V-4484
Wear Plate for ASSY 8R5005 9C6375 9
0.625 x 8.000 x 6.500
