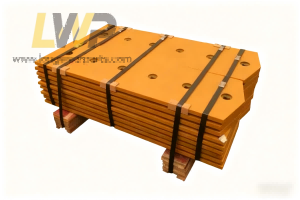

Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .
Long wear parts product line includes a comprehensive array of cutting edges & end bits compatible with all makes and models of bulldozers .Long wear parts offer a diverse array of blade types including Boron steel dozer Cutting Edge,Manganese dozer Cutting Edge,Carbon steel dozer Cutting Edge,Boron steel dozer End Bit,Manganese dozer End Bit,Carbon steel dozer End Bit .
Part number
Alternative number
Description
Dimension
Hole
4T3009
4T-3009
Center
0.750 x 8.000 x 59.875
10
4J8261
4J-8261
Cast End Bit RH
0.750 x 8.999 x 14.996
6
4J8262
4J-8262
Cast End Bit LH
0.750 x 8.999 x 14.996
6
3G8297
3G-8297
Hot Cup End Bit RH
1.000 x 10.300 x 15.440
6
3G8298
3G-8298
Hot Cup End Bit LH
1.000 x 10.300 x 15.440
6
9W9010HC
9W-9010HC
Hot Cup End Bit RH
1.125 x 11.000 x 17.750
6
9W9011HC
9W-9011HC
Hot Cup End Bit LH
1.125 x 11.000 x 17.750
6
4T3041
4T-3041
Level Cut End Bit RH
0.750 x 8.000 x 14.890
6
4T3042
4T-3042
Level Cut End Bit LH
0.750 x 8.000 x 14.890
6
4T3013
4T-3013
Center
0.750 x 8.000 x 39.875
7
4T6659
4T-6659
Center
0.750 x 8.000 x 41.500
7
4T3017
4T-3017
Optional One Piece Edge
0.750 x 8.000 x 91.750
15
4T3011
4T-3011
Center
0.750 x 8.000 x 63.750
11
4T3010
4T-3010
End
0.750 x 8.000 x 25.875
4
5J1419
5J-1419
Cast End Bit RH
0.875 x 9.497 x 14.997
6
5J1420
5J-1420
Cast End Bit LH
0.875 x 9.497 x 14.997
6
3G8319
3G-8319
Hot Cup End Bit RH
0.875 x 9.610 x 16.940
6
3G8320
3G-8320
Hot Cup End Bit LH
0.875 x 9.610 x 16.970
6
4T3045
4T-3045
Level Cut End Bit RH
0.750 x 8.000 x 14.850
6
4T3046
4T-3046
Level Cut End Bit LH
0.750 x 8.000 x 14.750
6
4T3008
4T-3008
Center
0.750 x 8.000 x 45.875
11
4T3020
4T-3020
End
0.750 x 8.000 x 33.813
9
4T3030
4T-3030
Center
0.750 x 8.000 x 47.875
12
4T2978
4T-2978
Optional One Piece Edge
0.625 x 8.000 x 95.875
24
3G8295
3G-8295
Hot Cup End Bit RH
1.000 x 10.300 x 15.440
6
3G8296
3G-8296
Hot Cup End Bit LH
1.000 x 10.300 x 15.440
6
4T3049
4T-3049
Level Cut End Bit RH
0.750 x 8.000 x 14.000
6
4T3050
4T-3050
Level Cut End Bit LH
0.750 x 8.000 x 14.000
6
