Caterpillar dozer D4 cutting edge 4T6230/6Y5841/255-1429

Products information
1)Material: Carbon steel or Manganese steel or boron steel
2)Surface: yellow paint or gray paint or as your request
3)Hardness: HB280-500 or HB320~360 or HB440~500
4)Technique: forging, machining, heat treatment

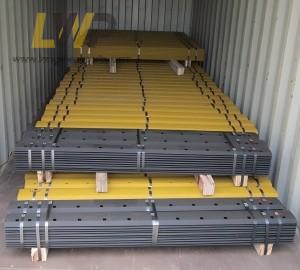

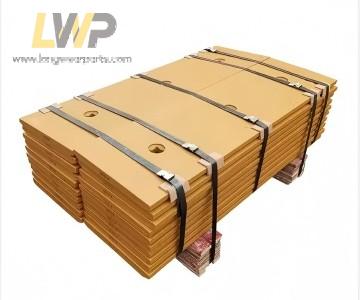

5) Package: strong plywood pallet
6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

Product Description:

Our aftermarket replacement full sets of Caterpillar D4 Cutting Edge & End Bits are heavy-duty ground engaging components engineered for CAT D4 track-type dozers.Caterpillar D4 dozer are suitable for highway subgrade construction, land clearing, site preparation, stockpile levelling, slope shaping, gravel and compacted soil work.
Our factory offer a diverse array of blade types including Boron steel dozer Cutting Edge,Manganese dozer Cutting Edge,Carbon steel dozer Cutting Edge,Boron steel dozer End Bit,Manganese dozer End Bit,Carbon steel dozer End Bit,you can select material & hardness by working condition.

Our high-quality aftermarket D4 cutting edge and end bit can solve below issues :
1. Eliminates dull cutting edge, high pushing resistance and slow earthmoving efficiency.
2. Prevents bending and distortion of worn blade edges that cause uneven, wavy finished ground.
3. Reduces corner chipping, gouging and irregular side trimming during slope work.
4. Avoids bolt hole deformation and loose installation caused by long-term vibration.
5. Direct replacement saves the high cost of repairing or replacing the entire dozer blade.
We supply high-quality cutting edges and end bits for Caterpillar D4 dozers, and our product range covers many other models and major equipment brands. All GET parts feature stable metallurgical quality, precise dimensional control and consistent wear performance. With reasonable pricing and reliable lead times,we support bulk orders for equipment dealers,maintenance contractors and mining & construction fleets. Welcome to contact us to get your quotation and parts catalog !


Part number Alternative number Description Dimension Hole
4T6230 4T-6230 Center 0.625 x 6.500 x 34.250 6
6Y5841 6Y-5841 Center 0.625 x 6.500 x 35.875 6
1406836 140-6836 Center 0.625 x 6.500 x 37.000 6
1049634 104-9634 Center 0.625 x 6.500 x 38.375 6
1402187 140-2187 Center 0.625 x 6.500 x 39.800 6
2551429 255-1429 Center 0.625 x 6.500 x 40.500 6
1577338 157-7338 Center 0.625 x 6.500 x 43.250 7
4T6232 4T-6232 Center 0.625 x 6.500 x 47.750 8
2551474 255-1474 Center 0.625 x 6.500 x 49.193 8
6Y5842 6Y-5842 Center 0.625 x 6.500 x 49.875 8
1412238 141-2238 Center 0.625 x 6.500 x 51.500 8
4T6229 4T-6229 Level Cut End Bit LH/RH 0.625 x 6.500 x 13.000 3
2085277 208-5277 Heavy Duty Center 0.875 x 6.500 x 38.375 6
6Y5839 6Y-5839 Level Cut End Bit RH 0.625 x 6.500 x 13.875 3
6Y5840 6Y-5840 Level Cut End Bit LH 0.625 x 6.500 x 13.875 3
4T6229RHHC 4T-6229RHHC Hot Cup End Bit RH 0.750 x 8.500 x 15.468 3
4T6229LHHC 4T-6229LHHC Hot Cup End Bit LH 0.750 x 8.500 x 15.468 3
