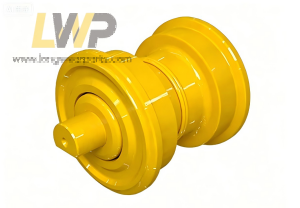

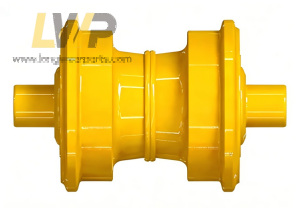

Caterpillar Track Roller 9W8705/9W8706/8P5605

Products information
1)Track roller body material: 40Mn2/50Mn/42CrMo
2)Surface hardness: HRC52-60 ;Hardened layer:≥4mm(High-End Mining    Model≥8-20mm);
3)Shaft material: 50Mn/40Cr/45#
4)Shaft Hardness: HRC50-62,Hardened layer:2~7mm;
5)Bearing/Bushing material: GCr15
6)Package: packed in strong pallets
7)Application: support the weight of the entire machine, guides the movement of the tracks, and prevents lateral deviation; it serves as the core load-bearing and guiding component of the t

Product Description:

Long wear parts@ supply high quality Caterpillar Track Roller/Caterpillar Lower Roller/Caterpillar Bottom Roller/Caterpillar Rodillos Inferiores/ Caterpillar Rullo Inferiore. Our Track Rollers have a high hardness level of HRC52-60. They are manufactured using a through hardening system and spraying quenching system, in compliance with the stringent ISO System.

Long wear parts@ use advanced machining centres, both horizontal and vertical, to execute processes such as machining, drilling, threading and milling. This ensures the quality and precision of each component, maximising their lifespan and minimising production costs per hour.

Additionally, they feature good bronze bushings and a deep hardened wear surface. This ensures excellent wear resistance even in the most severe working conditions.

The bulldozer track rollers of Long wear parts@ are available in single flange and double flange options and are designed with dual shafts to reduce internal heat generation, can fit Caterpillar(CAT) /Komatsu /ESCO /Sany / Hyundai/ Hitachi/ Liebherr/ Hensley /VOLVO/ Liugong/ Xugong/ MTG/JCB/H&L/Combi/ Case/John deere/Kobelco equipments.


Model Part number Alternative number Description
D8L 9W7827 9W-7827 Caterpillar Track Roller
D8L 7G7595 7G-7595 Caterpillar Track Roller
D8L 2Y8239 2Y-8239 Caterpillar Track Roller
D8L 2Y8709 2Y-8709 Caterpillar Track Roller
D8N, D8R, 578 9W8705 9W-8705 Caterpillar Track Roller
D8N, D8R, 578 7T9188 7T-9188 Caterpillar Track Roller
D8N, D8R, 578 1969947 196-9947 Caterpillar Track Roller
D8N, D8R, 578 2460775 246-0775 Caterpillar Track Roller
D8N, D8R, 578 1078082 (S/F 107-8082 (S/F Caterpillar Track Roller
D8N, D8R, 578 9W8706 9W-8706 Caterpillar Track Roller
D8N, D8R, 578 7T9193 7T-9193 Caterpillar Track Roller
D8N, D8R, 578 1969946 196-9946 Caterpillar Track Roller
D8N, D8R, 578 2460779 246-0779 Caterpillar Track Roller
D8N, D8R, 578 1078083 (D/F) 107-8083 (D/F) Caterpillar Track Roller
D9G, D9H 7S7672 7S-7672 Caterpillar Track Roller
D9G, D9H 8P5605 8P-5605 Caterpillar Track Roller
D9G, D9H 4M0582 (S/F) 4M-0582 (S/F) Caterpillar Track Roller
D9G, D9H 7S7673 7-S7673 Caterpillar Track Roller
D9G, D9H 8P5604 8P-5604 Caterpillar Track Roller
D9G, D9H 4M0583 (D/F) 4M-0583 (D/F) Caterpillar Track Roller
