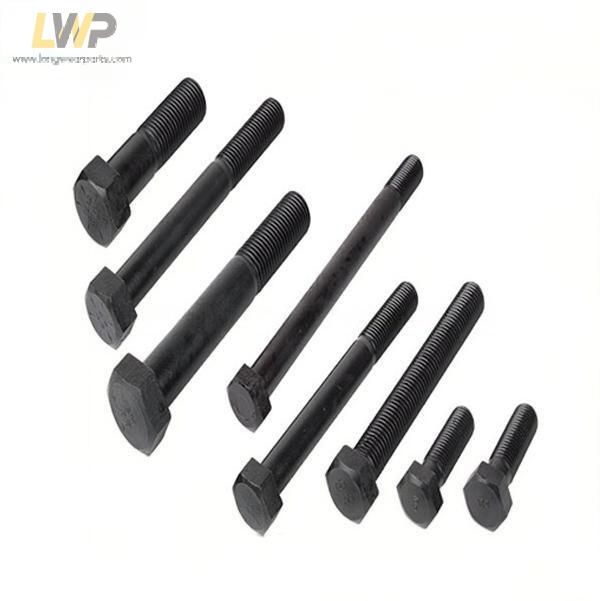

Products information 1) Material: 40Cr 2) Surface: black oxygen, galvanization or as your request 3) Hardness: 36~42HRC 4) Grade: 12.9 5) Impact Strength: ≥12~15J (at 25°C) 6) Package: boxes packed in Plywood Cases 7) Application : Split link bolt used in a wide variety of applications across all Caterpillar machinery,they are used to secure the links to the undercarriage frame of heavy machinery like excavators, bulldozers, and tracked loaders
We supply track bolt,split link bolt,segment bolt and nuts for Caterpillar, Komatsu, Hyundai,Volvo,JCB,Hitachi undercarriages. Our undercarriage spare parts and track systems are manufactured with the finest material for durability, reliability and practicality.
Bolt
Diameter
Part number
Description
Dimension
Length
9/16
5P4684
Split Link bolt
9/16 X 2 7/8
2 7/8
5/8
3T8601
Split Link bolt
5/8 X 2 19/32
2 19/32
9G8592
Split Link bolt
5/8 X 3 1/4
3 1/4
3P2274
Split Link bolt
5/8 X 3 1/2
3 1/2
3T8580
Split Link bolt
5/8 X 3 1/2
3 1/2
188-5790
Split Link bolt
5/8 X 3 1/2
3 1/2
3/4
6V1793
Split Link bolt
3/4 X 3 9/64
3 9/64
9S1838
Split Link bolt
3/4 X 4 1/8
4 1/8
3P1111
Split Link bolt
3/4 X 4 1/8
4 1/8
188-5634
Split Link bolt
3/4 X 4 1/8
4 1/8
2P9670
Split Link bolt
3/4 X 4 3/8
4 3/8
188-5637
Split Link bolt
3/4 X 4 3/8
4 3/8
