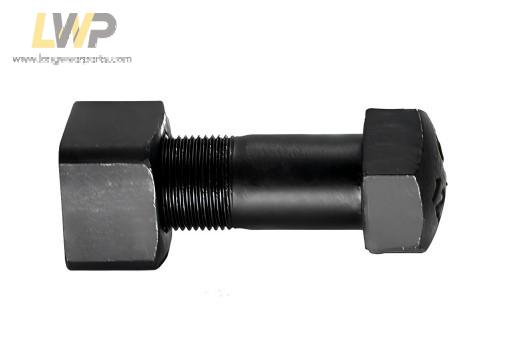

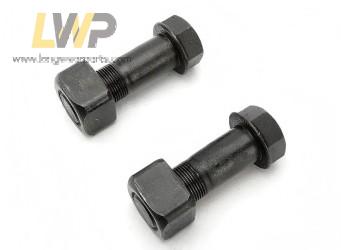

Products information 1) Material: 40Cr 2) Surface: black oxygen, galvanization or as your request 3) Hardness: 36~42HRC 4) Grade: 10.9, 12.9 5) Impact Strength: ≥12~15J (at 25°C) 6) Package: boxes packed in Plywood Cases 7) Application :used in a wide variety of applications across all Caterpillar machinery,they are used to secure the track plates to the undercarriage frame of heavy machinery like excavators, bulldozers, and tracked loaders.
We supply track bolt,split link bolt,segment bolt and nuts for Caterpillar, Komatsu, Hyundai,Volvo,JCB,Hitachi undercarriages. Our undercarriage spare parts and track systems are manufactured with the finest material for durability, reliability and practicality.
Bolt
Diameter
Part number
Description
Dimension
Length
Thread
M22
Track Bolt
M22 (2.0) x 55
55mm
2.0 pitch
6Y9024
Track Bolt
M22 (1.5) x 66
66mm
1.5 pitch
Track Bolt
M22 (1.5) x 70
70mm
1.5 pitch
5P4028
Track Bolt
M22 (1.5) x 75
75mm
1.5 pitch
9W4381
Track Nut Sq
M22 (1.5) x 22.0
22mm
1.5 pitch
096-0586
Track Nut Sq
M22 (1.5) x 24.0
24mm
1.5 pitch
200-9154
Track Nut Hex
M22 (1.5) x 28.5
28.5mm
1.5 pitch
8C7580
Track Nut Hex
M22 (1.5) x 28.5
28.5mm
1.5 pitch
200-9121
Track Nut Hex
M22 (2.0) x 22.0
22mm
2.0 pitch
M24
150-4741
Track Bolt
M24 (1.5) x 67
67mm
1.5 pitch
150-4742
Track Nut Sq
M24 (1.5) X 24.0
24mm
1.5 pitch
M27
144-0805
Track Bolt
M27 (1.5) x 78
78mm
1.5 pitch
6Y7432
Track Bolt
M27 (2.0) x 93
93mm
2.0 pitch
6Y7433
Track Nut Sq
M27 (2.0) x 38.5
38.5mm
2.0 pitch
M30
174-0221
Track Bolt
M30 (2.0) x 96
96mm
2.0 pitch
174-0222
Track Nut Sq
M30 (2.0) x 38.5
38.5mm
2.0 pitch
