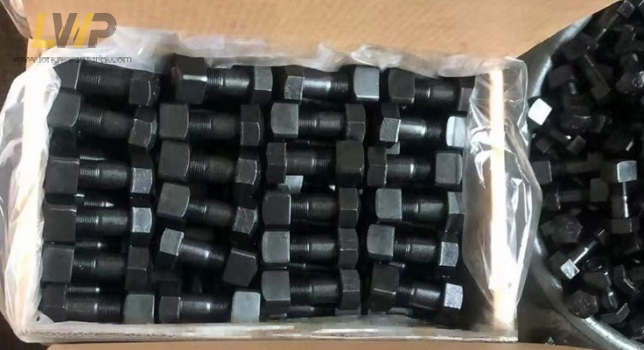

Products information 1) Material: 40Cr or 42CrMo 2) Surface: black oxygen, galvanization or as your request 3) Hardness: 36~42HRC 4) Grade: 10.9, 12.9 5) Impact Strength: ≥12~15J (at 25°C) 6) Package: boxes packed in Plywood Cases 7) Application :used in a wide variety of applications across all Caterpillar machinery,they are used to secure the track plates to the undercarriage frame of heavy machinery like excavators, bulldozers, and tracked loaders.
Our aftermarket Caterpillar track bolts are high-strength fasteners for undercarriage systems, they are always paired with track nuts to secure track shoes onto track links,and widely used on Caterpillar excavators, dozers and wheel loaders. The track system endures heavy impact loads, alternating shear force, abrasive wear and mud-water corrosion during operation. Therefore, track bolts require outstanding tensile strength, shear resistance and fatigue life.
Surface finish options include black oxide, zinc plating and Dacromet coating which can enhance rust and corrosion protection. Our Caterpillar track bolts are suitable for harsh working conditions including earthmoving, mining, quarrying and infrastructure construction.
FAQ:
Q: What is Caterpillar track bolt used for?
A: Caterpillar track bolts fasten track shoes to track links on CAT tracked excavators and dozers. They withstand continuous shear, impact and abrasion during machine travel.
Q: Can I reuse old track bolts after track shoe replacement?
A: Not recommended. Track bolts bear cyclic shear stress. Reused bolts have metal fatigue and high risk of sudden breakage.
Q: Can I reuse old track bolts after track shoe replacement?
A: Not recommended. Track bolts bear cyclic shear stress. Reused bolts have metal fatigue and high risk of sudden breakage.
Thank you for your interest in our aftermarket Caterpillar track bolts replacement. To quote precisely, please share your track bolt part number or track shoe OEM part number, track bolt strength class, surface finish and priority material for quotation. I can send you prices and lead time immediately.
|
Bolt Diameter |
Part number | Description | Dimension | Length | Thread |
| M14 | 136-2401 | Track Bolt | M14 (1.5) x 48 | 48mm | 1.5 pitch |
| 200-9104 | Track Bolt | M14 (1.5) x 48 | 48mm | 1.5 pitch | |
| Track Bolt | M14 (1.5) x 56 | 56mm | 1.5 pitch | ||
| 136-2404 | Track Nut Sq | M14 (1.5) x 14.7 | 14.7mm | 1.5 pitch | |
| 200-9099 | Track Nut Sq | M14 (1.5) x 14.7 | 14.7mm | 1.5 pitch | |
| M16 | 4I7538 | Track Bolt | M16 (1.5) x 48 | 48mm | 1.5 pitch |
| 30104302 | Track Bolt | M16 (1.5) x 48 | 48mm | 1.5 pitch | |
| 096-1043 | Track Bolt | M16 (1.5) x 57 | 57mm | 1.5 pitch | |
| 218-3274 | Track Bolt | M16 (1.5) x 57 | 57mm | 1.5 pitch | |
| 093-0259 | Track Bolt | M16 (1.5) x 65 | 65mm | 1.5 pitch | |
| 5I6125 | Track Nut Sq | M16 (1.5) x 16 | 16mm | 1.5 pitch | |
| M18 | 093-0262 | Track Bolt | M18 (1.5) x 57 | 57mm | 1.5 pitch |
| Track Bolt | M18 (1.5) x 64 | 64mm | 1.5 pitch | ||
| 093-0320 | Track Nut Sq | M18 (1.5) X 19 | 19mm | 1.5 pitch | |
| 188-5432 | Track Nut Sq | M18 (1.5) X 19 | 19mm | 1.5 pitch | |
| M20 | 200-9146 | Track Bolt | M20 (1.5) x 54 | 54mm | 1.5 pitch |
| 9W3619 | Track Bolt | M20 (1.5) x 55 | 55mm | 1.5 pitch | |
| 093-0266 | Track Bolt | M20 (1.5) x 60 | 60mm | 1.5 pitch | |
| 093-0321 | Track Bolt | M20 (1.5) x 60 | 60mm | 1.5 pitch | |
| 096-4300 | Track Bolt | M20 (1.5) x 60 | 60mm | 1.5 pitch | |
| 6Y0846 | Track Bolt | M20 (1.5) x 63 | 63mm | 1.5 pitch | |
| 200-9159 | Track Bolt | M20 (1.5) x 65 | 65mm | 1.5 pitch | |
| 200-91110 | Track Bolt | M20 (1.5) x 68.5 | 68.5mm | 1.5 pitch | |
| 093-0321 | Track Nut Sq | M20 (1.5) x 25.0 | 25mm | 1.5 pitch | |
| 200-9127 | Track Nut Sq | M20 (1.5) x 25.0 | 25mm | 1.5 pitch | |
| 9W3361 | Track Nut Sq | M20 (1.5) x 20.3 | 20.3mm | 1.5 pitch |
