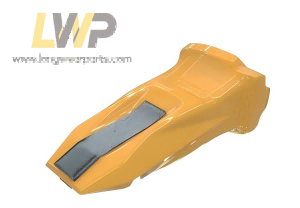

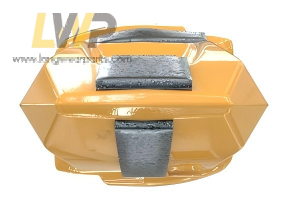

Caterpillar Heavy Duty Loader Tooth 472-7763/472-7765/472-7768

Products information
1) Material: Low alloy steel
2) Surface: Standard yellow or as your request
3) Hardness: 480-520 HBW
4) Impact Strength: ≥18J (at 25°C)
5) Package: packed in plywood cases
6) Application :used in Excavator buckets, Loader bucekts,Diggers,Rippers to  efficiently dig, trench, and break hard ground.

Product Description:

Long wear parts@ supply high quality Caterpillar Heavy‑Duty Long‑Life Tooth (ARM) & Caterpillar Penetration Long Life Tooth (ARM) . Our Caterpillar Bucket Teeth are designed for improved performance and wear life and are the ideal choice for all operators looking for quality and value. We can supply you various Caterpillar bucket teeth for full series , include Caterpillar J-series , K-series , A-series and so on.We can provide convenient one-stop service to improve your procurement efficiency.Caterpillar Heavy Duty Loader Tooth 233-7170 usually match bucket adapter 478-2529/478-2530/478-2531, the locking pin is 232-0170 ;

Our aftermarket Caterpillar Heavy‑Duty Long‑Life Tooth (ARM) is premium heavy‑duty ground engaging tool built on Cat K‑series vertical twist‑on hammerless retention system. Adopting ARM Abrasion‑Resistant Material reinforcement on critical high‑wear zones, this tooth features enlarged wear‑metal volume and optimized low‑profile self‑sharpening geometry. Caterpillar Heavy Duty Loader Tooth 472-7765 usually match bucket adapter 472-0790/472-0791/472-0792, the locking pin is 220-9130 ;This aftermarket replacement tooth fully interchanges with original K‑series adapters for large CAT excavators and wheel loaders.

Caterpillar Heavy Duty Loader Tooth 475-5488 usually match bucket adapter 222-1094/222-1095/222-1096, the locking pin is 220-9090 ;It delivers extended service life under combined abrasive‑medium‑impact quarry and mining conditions. Optimized for medium‑impact high‑abrasion jobs: sandstone, granite, abrasive aggregate, gravel pile‑up and mineral ore loading. Compared with standard heavy‑duty K‑series teeth, ARM version offers greatly improved wear performance and longer service intervals.Caterpillar Heavy Duty Loader Tooth 475-5477 usually match bucket adapter 222-1087/222-1088/222-1089, the locking pin is 220-9090 ;

Our aftermarket Caterpillar Penetration Long Life Tooth (ARM) is high‑performance ground engaging tool under Cat K‑series vertical twist‑on hammerless retention system. It adopts slim tapered penetrator profile with extra wear‑metal reserve at the nose section. This design combines excellent ground penetration and extended service life, maintaining self‑sharpening cutting edge throughout the whole wear cycle.

Caterpillar Heavy Duty Loader Tooth 475-5501 usually match bucket adapter 223-8107/223-8108/223-8109, the locking pin is 220-9090 ;Optimized for heavily compacted hard soil, heavy clay, frozen ground, shale and moderately abrasive fractured rock. Caterpillar Heavy Duty Loader Tooth 472-7768 usually match bucket adapter 472-0799/472-0800/472-0801, the locking pin is 233-7150 ;Slim nose cuts rapidly into dense material to lower digging resistance and improve machine cycle efficiency, while extra wear reserve extends working hours between replacements. Compatible with K80, K90, K100, K110, K130, K150 adapters. Not suitable for continuous heavy‑impact oversized boulders. Select K‑series rock chisel tooth for heavy rock blasting quarry jobs.Caterpillar Heavy Duty Loader Tooth 472-7763 usually match bucket adapter 472-0814/472-0815/472-0816, the locking pin is 286-2110 ;

Thanks you for your interest in our products. To assist you more efficiently , could you please advise which specific products you are considering and what kind of information you would like us to provide ?

Model Part number Alternative number Description
K80 4755478 475-5478 Penetration Long Life Tooth (ARM)
K90 4755489 475-5489 Penetration Long Life Tooth (ARM)
K100 4755502 475-5502 Penetration Long Life Tooth (ARM)
K110 4727764 472-7764 Penetration Long Life Tooth (ARM)
K130 4727766 472-7766 Penetration Long Life Tooth (ARM)
K150 4727769 472-7769 Penetration Long Life Tooth (ARM)
K170 2337171 233-7171 Penetration Long Life Tooth (ARM)
K130 4727767 472-7767 Heavy Penetration Long Life Tooth (ARM)
K150 4727770 472-7770 Heavy Penetration Long Life Tooth (ARM)
