Products information 1) Material: Low alloy steel / Forging 2) Surface: Standard yellow or as your request 3) Hardness: 480-530 HBW 4) Impact Strength: ≥22J (at 25°C) 5) Package: packed in plywood cases 6) Application :used for protecting the bucket from wear and tear
Our aftermarket replacement Caterpillar Half Arrow Lip Shrouds are a premium Ground Engaging Tool (GET) designed to protect the base edge of your loader or excavator bucket from premature wear and structural damage. Positioned between bucket tooth adapters, these cast segments shield the exposed bucket lip from abrasive materials, extending the service life of both the bucket and its GET system. The Half Arrow design offers an optimal balance of protection, penetration, and productivity.
Caterpillar bolt-on 4 holes half arrow lip shrouds 275-5938/275-5936/275-5937 are mainly used in models WHEEL LOADER 993K 992K 988H 992G, the segment thickness are 75mm;
Caterpillar bolt-on 4 holes half arrow lip shrouds 275-6055/275-6056/ 275-6057are mainly used in models WHEEL LOADER 990H, the segment thickness are 75mm;

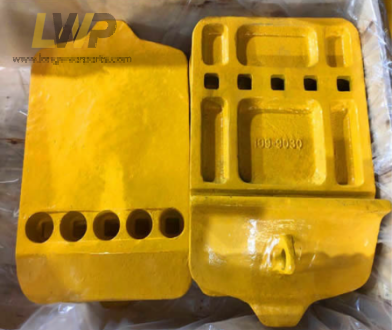

Caterpillar bolt-on 5 holes half arrow lip shrouds 109-9030/109-9031/ 109-9032 are mainly used in models WHEEL LOADER 994, the segment thickness are 75mm;
Caterpillar bolt-on 5 holes half arrow lip shrouds 109-9033/117-6805/ 117-6806 are mainly used in models WHEEL LOADER 994F, the segment thickness are 75mm;
Caterpillar bolt-on 2 holes half arrow lip shroud 313-5550 is mainly used in models 980G 980F 970F 980G, the segment thickness are 30mm;
Caterpillar bolt-on 2 holes half arrow lip shroud 313-5548 is mainly used in models 980G 980F 966F 980G, the segment thickness are 30mm;
Caterpillar bolt-on 2 holes half arrow lip shroud 174-4115 is mainly used in models 980G 980F 980G, the segment thickness are 30mm;
Caterpillar bolt-on 2 holes half arrow lip shroud 173-7447 is mainly used in models 988B 980G 980C 980F 980G, the segment thickness are 30mm;
Caterpillar bolt-on 2 holes half arrow lip shrouds 135-9544/135-9545/ 135-9546 are mainly used in models 966H 966G 972G 972H 972K 966K 374F 374D, the segment thickness are 40mm;
Our Caterpillar Wear parts include Half Allow/Upper Wear Plate/Top Cover/Wear Protection/Lip Shroud/Wing Shroud/Heel Shroud/Side Bar Protector/Side Cutter/Side Protector/Corner Protector/Corner Guard and so on.Welcome to contact us for more detailed information !
Model
Part number
Alternative number
Description
WHEEL LOADER 993K 992K 988H 992G
2755938
275-5938
Half Arrow(4Holes) Center-Arm
2755936
275-5936
Half Arrow L Segment(4Holes) R-Arm
2755937
275-5937
Half Arrow R Segment(4Holes) L-Arm
WHEEL LOADER 990H
2756055
275-6055
Half Arrow(4Holes) Center
2756056
275-6056
Half Arrow L Segment(4Holes) R
2756057
275-6057
Half Arrow R Segment(4Holes) L
WHEEL LOADER 994
1099030
109-9030
Half Arrow(5Holes) Center
1099031
109-9031
Half Arrow L Segment(5Holes) R
1099032
109-9032
Half Arrow R Segment(5Holes) L
WHEEL LOADER 994F
1099033
109-9033
Half Arrow(5Holes) Center
1176805
117-6805
Half Arrow L Segment(5Holes) R
1176806
117-6806
Half Arrow R Segment(5Holes) L
980G 980F 970F 980G
3135550
313-5550
Half Arrow(2Holes) Center
980G 980F 966F 980G
3135548
313-5548
Half Arrow(2Holes) Center
980G 980F 980G
1744115
174-4115
Wear Protection/Half Arrow(2Holes)
988B 980G 980C 980F 980G
1737447
173-7447
Wear Protection/Half Arrow(2Holes)
966H 966G 972G 972H 972K 966K 374F 374D
1359544
135-9544
Half Arrow(2Holes) Center
1359545
135-9545
Half Arrow L Segment(2Holes) R
1359546
135-9546
Half Arrow R Segment(2Holes) L
