Products information 1)Sprocket material: 35Mn2、40MnB、45#Carbon steel、42CrMo; 2)Surface hardness: Standard HRC50-60; Heavy-duty mining HRC55-62; 3)Tooth Hardening Depth: 18–23mm; 4)Tensile Strength: ≥800MPa; 5)Structure Type: Single Piece/Split Rim ; 6)Pitch Tolerance:±0.1~0.5mm; 7)Package: packed in strong pallets; 8)Application: Drive sprocket is responsible for transmitting the power of the hydraulic motor to the track chain, thereby driving the machine forward or backward.

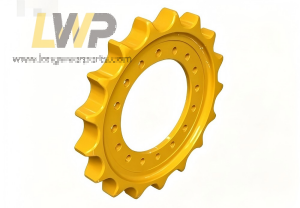

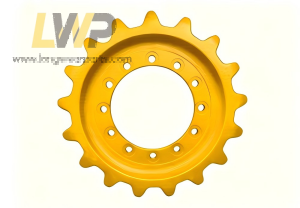

Long wear parts@ supply drive sprocket is the core power transmission component of crawler undercarriage system, mounted on final drive reducer to drive track chain for machine traveling. Fully compatible with all mainstream brand excavators from 1T mini digger to 90T mining excavator.
Our Core Advantages:
1) Premium Alloy Raw Material Adopt 35Mn2 / 40MnB / 42CrMo high-strength forged alloy steel, high tensile & impact toughness, effectively avoid tooth crack & break under heavy load, rocky & muddy harsh working sites.
2）Dual Heat Treatment Craft Overall quenching & tempering + tooth surface medium-frequency induction hardening. Surface hardness HRC 50–62, hardening depth 8–12mm. Balanced hard surface & tough core, outstanding abrasion resistance, service life 30% longer than ordinary sprockets.
3）1:1 OEM Precision Machining CNC full machining for tooth profile, pitch circle, inner spline, bolt hole circle. Strictly copy OEM drawing parameters, perfect meshing with original track chain, no track slipping, no abnormal vibration & noise, protect final drive from overload damage.
4) Two Structural Options Available
One-piece solid sprocket: Low cost, widely used for mini & medium excavators;
Split segmented rim sprocket: Only replace worn tooth ring, save maintenance cost for large mining machines;
5）Full Model Coverage & Customization Complete part numbers for CAT, Komatsu, Hitachi, VOLVO,Kobelco, Doosan, Hyundai, Sany, XCMG, Case, Kubota, JCB, Liebherr. Support ODM/OEM: Custom size, tooth count, painting color, logo marking per drawings & samples.
Welcome to ask Long wear parts@ excavator drive sprocket, track drive wheel, undercarriage sprocket, final drive sprocket, split rim sprocket, mini digger sprocket, heavy mining sprocket, crawler undercarriage replacement parts.
Model
Part number
Alternative No.
Description
E303.5
1721965
172-1965
Caterpillar Drive Sprocket
303,303E CR
1937091
193-7091
Caterpillar Drive Sprocket
304C CR, 305.5D, 305.5E, 305C CR
2606341
260-6341
Caterpillar Drive Sprocket
303.5C, 303.5D, 303.5E,
303C CR, 304D CR, 304E
2645371
264-5371
Caterpillar Drive Sprocket
E305.5
1584795
158-4795
Caterpillar Drive Sprocket
259D 249D 239D 249D3 259B3
259D3 239D3 265 255
3041870
304-1870
Caterpillar Drive Sprocket
279C,279C2,279D,289C,289C2,289D,
299C,299D,299D XHP
3041916
304-1916
Caterpillar Drive Sprocket
E110B,311,312,314C
993220
993-220
Caterpillar Drive Sprocket
E120B
961479
961-479
Caterpillar Drive Sprocket
E110B,311-A,E140
0968047
096-8047
Caterpillar Drive Sprocket
205211
8E1882
8E-1882
Caterpillar Drive Sprocket
219D,219,225B,225D
9C2646
9C-2646
Caterpillar Drive Sprocket
235B,235C,235,235D
3V4527
3V-4527
Caterpillar Drive Sprocket
320322
E84690100
E846-90100
Caterpillar Drive Sprocket
E320/320B/320C/320D/323D/324D
8E9805
8E-9805
Caterpillar Drive Sprocket
