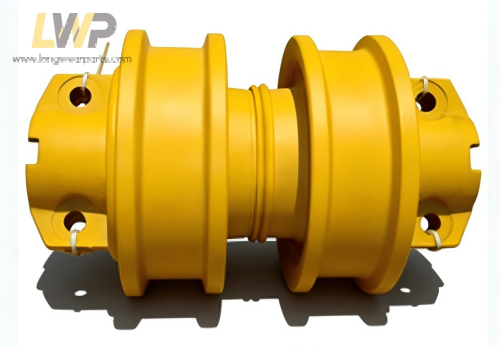

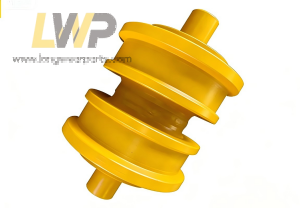

Products information 1)Track roller body material: 40Mn2/50Mn/42CrMo 2)Surface hardness: HRC52-60 ;Hardened layer:≥4mm(High-End Mining Model≥8-20mm); 3)Shaft material: 50Mn/40Cr/45# 4)Shaft Hardness: HRC50-62,Hardened layer:2~7mm; 5)Bearing/Bushing material: GCr15 6)Package: packed in strong pallets 7)Application: support the weight of the entire machine, guides the movement of the tracks, and prevents lateral deviation; it serves as the core load-bearing and guiding component of the t
Long wear parts@ Caterpillar Track Roller/Caterpillar Lower Roller/Caterpillar Bottom Roller/Caterpillar Rodillos Inferiores/ Caterpillar Rullo Inferiore own
numerous advantages :
1. High-Quality Construction: Crafted with precision using top-grade materials to ensure robustness and longevity.
2. Optimized Design: Engineered for superior performance and durability under heavy load conditions.
3. Sealed Bearings: Equipped with sealed bearings to prevent contamination, ensuring smooth operation and extending the service life.
4. Easy Installation: Designed for easy and efficient installation, reducing downtime during maintenance.
Besides , the bulldozer track rollers of Long wear parts@ are available in single flange and double flange options and are designed with dual shafts to reduce
internal heat generation, can fit Caterpillar(CAT) /Komatsu /ESCO /Sany / Hyundai/ Hitachi/ Liebherr/ Hensley /VOLVO/ Liugong/ Xugong/MTG/JCB/H&L/Combi/Case/John deere/Kobelco equipments.
Model
Part number
Alternative number
Description
D7F, D7G, 973,977K/L,
571F/G,572F/G
6T9867
6T-9867
Caterpillar Track Roller
D7F, D7G, 973,977K/L,
571F/G,572F/G
3P1521
3P-1521
Caterpillar Track Roller
D7F, D7G, 973,977K/L,
571F/G,572F/G
3P6063
3P-6063
Caterpillar Track Roller
D7F, D7G, 973,977K/L,
571F/G,572F/G
6P9885
6P-9885
Caterpillar Track Roller
D7F, D7G, 973,977K/L,
571F/G,572F/G
8S2932
8S-2932
Caterpillar Track Roller
D7F, D7G, 973,977K/L,
571F/G,572F/G
8S2933
8S-2933
Caterpillar Track Roller
973C
1346636
134-6636
Caterpillar Track Roller
973C
1346637
134-6637
Caterpillar Track Roller
D7H/R
9W5586
9W-5586
Caterpillar Track Roller
D7H/R
1248250
124-8250
Caterpillar Track Roller
D7H/R
2313090
231-3090
Caterpillar Track Roller
D7H/R
3235925(S/F)
323-5925(S/F)
Caterpillar Track Roller
D7H/R
9W5585
9W-5585
Caterpillar Track Roller
D7H/R
1248253
124-8253
Caterpillar Track Roller
D7H/R
2313092
231-3092
Caterpillar Track Roller
D7H/R
3235928(D/F)
323-5928(D/F)
Caterpillar Track Roller
