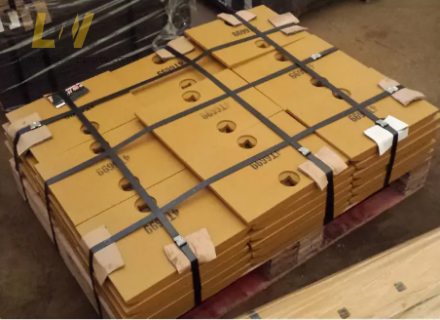

Products information 1) Material: Low alloy steel / Forging 2) Surface: Standard yellow or as your request 3) Hardness: 480-530 HBW 4) Impact Strength: ≥22J (at 25°C) 5) Package: packed in plywood cases 6) Application :used for protecting the bucket from wear and tear.

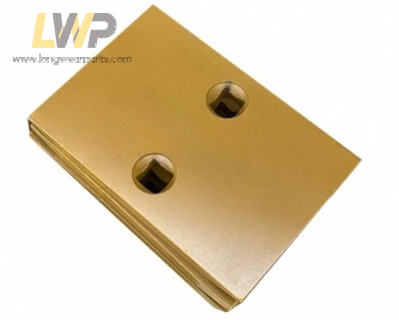

Our aftermarket replacement Caterpillar Loader Edge Segment/segment edge protection/bolt on edge segment is a bolt-on segmented wear protection component exclusively designed for Caterpillar wheel loader bucket cutting edges and corner zones. Unlike full-length one-piece cutting edges, CAT segmented edge segments adopt modular split design, covering bucket center straight edge and left/right corner transition edge areas.
Caterpillar Loader Edge Segments 100-6666/308-4322 are commonly used in models Caterpillar Wheel Loaders 972G 972M 966 966K 966M 966H 966G , the segment thickness is 30mm ;
Caterpillar Loader Edge Segments 4T6699/308-3054 are commonly used in models Caterpillar Wheel Loaders 966F 966H 966G 972G 972M 960F 962H 972G 966M 970F 972H , the segment thickness is 30mm ;
Caterpillar Loader Edge Segments 4T6698/308-4323 are commonly used in models Caterpillar Wheel Loaders 973C 973D 973 973K, the segment thickness is 30mm ;
Caterpillar Loader Edge Segments 140-6868/310-4064 are commonly used in models Caterpillar Wheel Loaders 972M 966H 972M 966M, the segment thickness is 35mm ;
Caterpillar Loader Edge Segments 140-6870/310-4067 are commonly used in models Caterpillar Wheel Loaders 973D 973 973K, the segment thickness is 35mm ;
Caterpillar Loader Edge Segments 4T6700/308-4327 are commonly used in models Caterpillar Wheel Loaders 982M 988B 982XE 980C 980F, the segment thickness is 30mm ;
Our Caterpillar Wear protection parts include Half Arrow/Upper Wear Plate/Top Cover/Segment/Wear Protection/Lip Shroud/Wing Shroud /Heel Shroud/Side Bar Protector/Side Cutter/Side Protector/Corner Protector/Corner Guard and so on. Welcome to contact us for more detailed information !
| Part number | Alternative number | Description |
| 1006666 | 100-6666 | Caterpillar Wear Protection-30Mm Segments |
| 3084322 | 308-4322 | Caterpillar Wear Protection-30Mm Segments |
| 4T6694 | 4T-6694 | Caterpillar Wear Protection-25Mm Segments |
| 4T6698 | 4T-6698 | Caterpillar Wear Protection-30Mm Segments |
| 4T6699 | 4T-6699 | Caterpillar Wear Protection-30Mm Segments |
| 1962894 | 196-2894 | Caterpillar Wear Protection-30Mm Segments |
| 2757647 | 275-7647 | Caterpillar Wear Protection-30Mm Segments |
| 3083054 | 308-3054 | Caterpillar Wear Protection-30Mm Segments |
| 3084323 | 308-4323 | Caterpillar Wear Protection-30Mm Segments |
| 3104064 | 310-4064 | Caterpillar Wear Protection-35Mm Segments |
| 3104067 | 310-4067 | Caterpillar Wear Protection-35Mm Segments |
| 1406868 | 140-6868 | Caterpillar Wear Protection-35Mm Segments |
| 1406870 | 140-6870 | Caterpillar Wear Protection-35Mm Segments |
| 1099019 | 109-9019 | Caterpillar Wear Protection-30Mm Segments |
| 4T6700 | 4T-6700 | Caterpillar Wear Protection-30Mm Segments |
| 3084327 | 308-4327 | Caterpillar Wear Protection-30Mm Segments |
| 1078580 | 107-8580 | Caterpillar Wear Protection-45Mm Segments |
| 1358219 | 135-8219 | Caterpillar Wear Protection-45Mm Segments |
| 2646233 | 264-6233 | Caterpillar Wear Protection-25Mm Segments |
| 1407601 | 140-7601 | Caterpillar Wear Protection-30Mm Segments |
| 2637545 | 263-7545 | Caterpillar Wear Protection-30Mm Segments |
| 1324715 | 132-4715 | Caterpillar Wear Protection-35Mm Segments |
| 2571726 | 257-1726 | Caterpillar Wear Protection-35Mm Segments |
