Products information 1)Material: High chromium white iron with a mild steel weldable backing plate 1)Surface: grey/silver metallic or as your request 2)Hardness: 63-65HRC 3)Technique: casting , adopt vacuum brazed laminated 5) Package: strong plywood crate 6) Application : used to prevent wear in localised trouble spots on heavy earth moving equipment, particularly on construction and mining buckets.

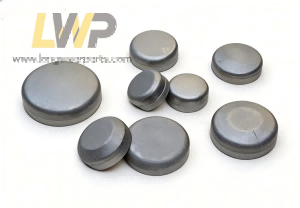

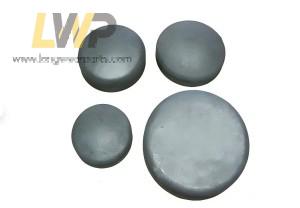

Wear Buttons are designed specifically for easy and adaptive installation onto a wide range of wear problem areas.Very easy to use, no pre or post heating when welding. Available in diameters from 60mm up to 150mm. Develop your own layout and pattern to suit your particular wear protection solution.
Long wear parts Wear Buttons can be well used in conjunction with Chocky Bars, Wear Plates or individually to provide protection or security under the toughest impact and wear abrasion circumstances.
Part No
Alternative number
Description
Diameter
Thickness
BT50A
BT-50A
2.0 inch Wear Buttons
50
27
BT60A
BT-60A
2.5 inch Wear Buttons
60
27
BT75A
BT-75A
3.0 inch Wear Buttons
75
27
BT90A
BT-90A
3.5 inch Wear Buttons
90
27
BT110A
BT-110A
4.3 inch Wear Buttons
110
32
BT115A
BT-115A
4.5 inch Wear Buttons
115
32
BT150A
BT-150A
6.0 inch Wear Buttons
150
41
