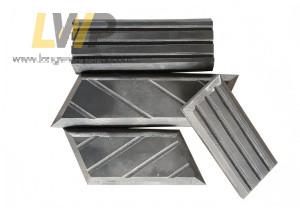

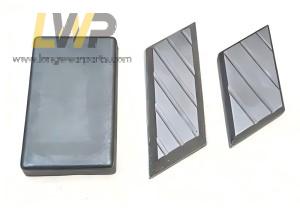

Bimetallic Skid Bars/Skid Blocks SB3-250B/SB3250B

Products information
1)Material: High chromium white iron with a mild steel weldable backing plate
1)Surface: grey/silver metallic or as your request
2)Hardness: 63-65HRC
3)Technique: casting , adopt vacuum brazed laminated
5) Package: strong plywood crate
6) Application : used in bottom and runner Protection for Shovels and Buckets.

In construction equipment,a skid bar is a part designed to minimize skidding or sliding of heavy machinery on certain surfaces.It could be a wear-resistant bar or plate used to enhance stability.

The Skid Bar is available in various lengths, widths and sizes, wherein the surface of the bar is smoothly shaped, and mainly used in bottom and runner Protection for Shovels and Buckets.

Except Skid bars/ skid blocks , Long wear parts supply Wear Blocks for wear and impact Protection, include chock block, chocky bar, wear button,wear donut,tungsten carbide wear plate,wear bar,grouser bar,grizzly bar,skid bar etc.

Item  No.	Alternative number	Size (mm)	Dimension(mm)
			A	B	C	D
SB1-214	SB1214	214x101x34	214	101	22	12
SB1-302	SB1302	302x101x34	302	101	22	12
SB1-154	SB1154	154x101x34	154	101	22	12
SB1-279	SB1297	279x75x34	297	75	22	12
SB2-214L	SB2214L	214x101x34	214	101	22	12
SB2-214R	SB2214R	214x101x34	214	101	22	12
SB2-302L	SB2302L	302x101x34	302	101	22	12
SB2-302R	SB2302R	302x101x34	302	101	22	12
SB2-154L	SB2154L	154x101x34	154	101	22	12
SB2-154R	SB2154R	154x101x34	154	101	22	12
SB3-250A	SB3250A	250x150x45	250	150	20	25
SB3-200	SB3200	200x150x45	200	150	20	25
SB3-250B	SB3250B	250x250x45	250	250	20	25
