Products information 1)Material: High chromium white iron with a mild steel weldable backing plate 1)Surface: grey/silver metallic or as your request 2)Hardness: 63-65HRC 3)Technique: casting , adopt vacuum brazed laminated 5) Package: strong plywood crate 6) Application : Concrete mixer, Hopper/Chute, fan industry,coal industry, mining machinery(Buckets), construction machinery(truck bed).

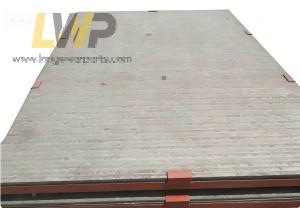

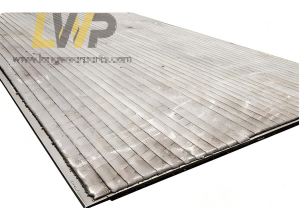

OVERLAY-PLATE is welded by Chromium carbide overlay on a mild steel backing plate. It is good for high abrasion and high impact wear resistant!
>> Standard sheet size we can produce is 1500x3000mm.We can also cut into your requried sizes.
>> Most popular thickness: 4+4, 6+4, 6+6, 8+5, 8+6, 10+5, 10+9, 10+10, 12+12, 12+17, 10+20.
>> Typical applications: Concrete mixer, Hopper/Chute, fan industry,coal industry, mining machinery(Buckets), construction machinery(truck bed).
>> Holes, studs can be added or machined.
>> We could bend or formed the wear plates to required shapes.
Standard
Overlays
Weight
sq/m(kg)
Standard Sheet Size(mm)
Overall Thinckness
4 on 4
62
1500x3000 / 1200x2400
8
4 on 6
77
1500x3000 / 1200x2400
10
6 on 6
92
1500x3000 / 1200x2400
12
5 on 8
100
1500x3000 / 1200x2400
13
6 on 8
108
1500x3000 / 1200x2400
14
5 on 10
116
1500x3000 / 1200x2400
15
9 on 10
146
1500x3000 / 1200x2400
19
10 on 10
157
1500x3000 / 1200x2400
20
12 on 12
162
1500x3000 / 1200x2400
24
17 on 12
222
1500x3000 / 1200x2400
29
